Spal Fan mounting pin kit.
This stainless steel product allows the user to mount any Spal fan in a matter of seconds.
Use as a permanent mount or use these pins for mocking up fan position when making a fan shroud.
Diameter : 2mm
Length: 180mm

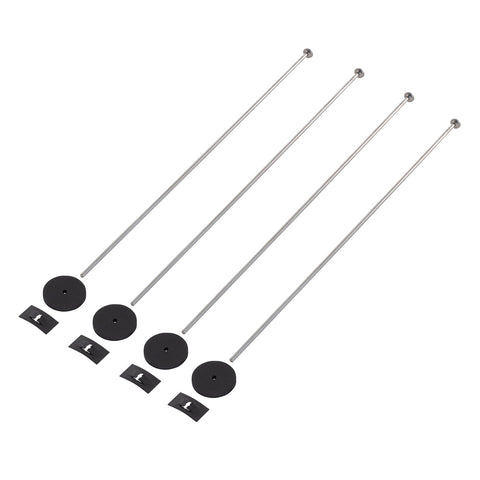

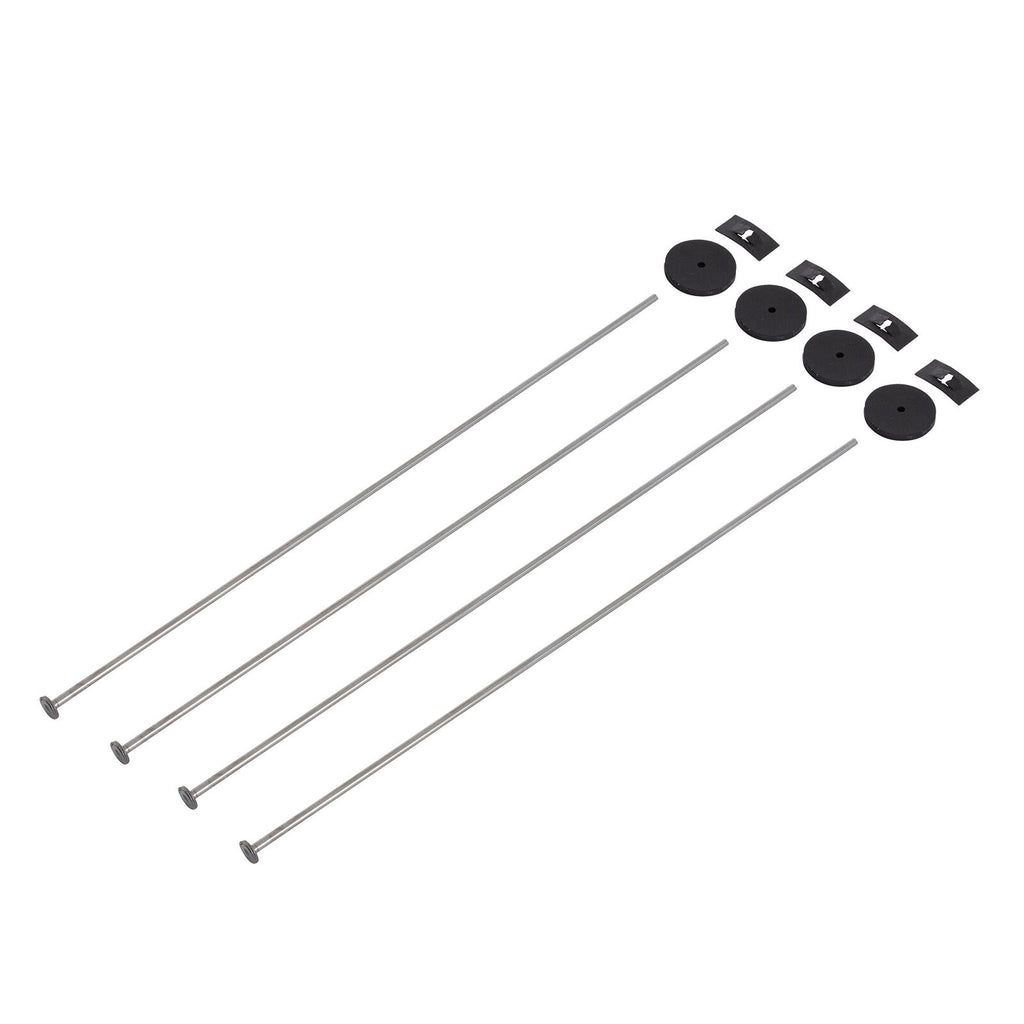

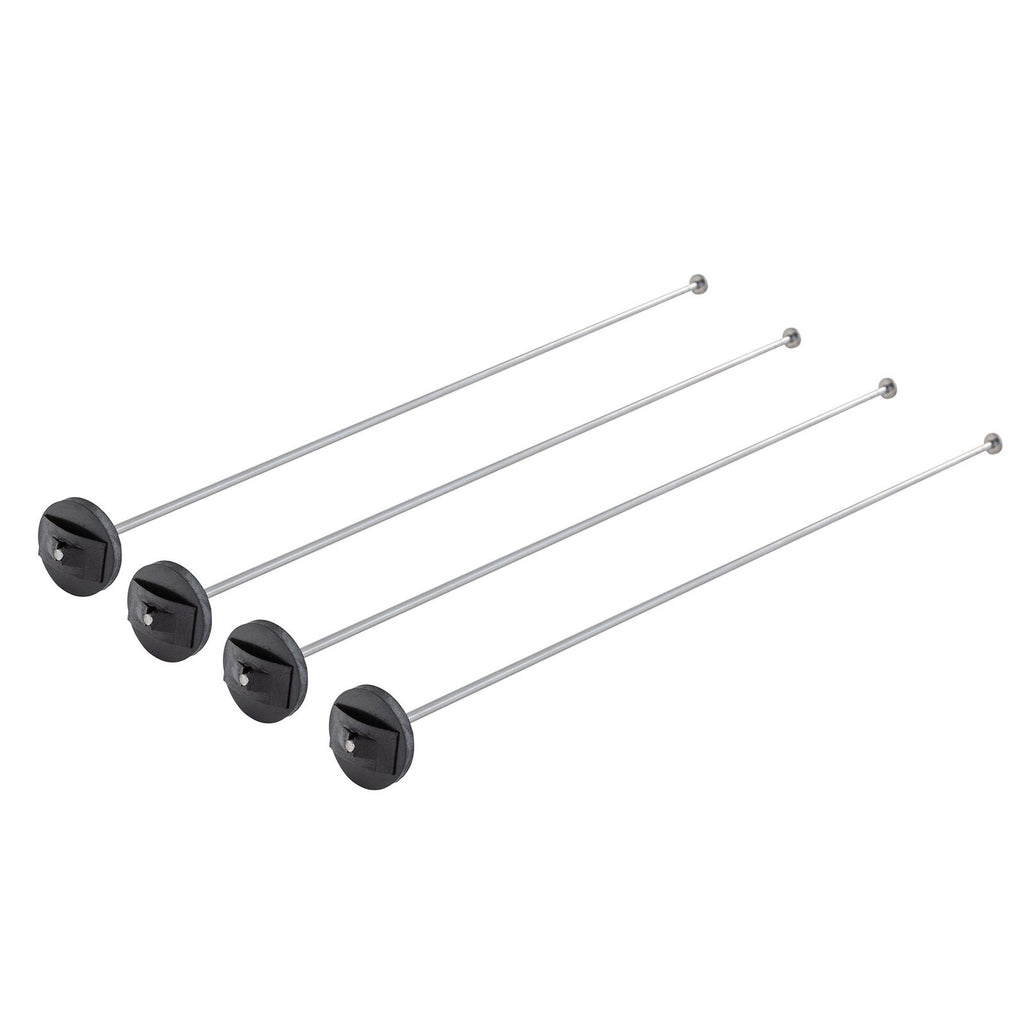

Kit contains: Mounting pins, rubber washers, retaining springs
To install:
Place pin through the small hole on the Spal fan and through the core of the radiator. Put the pin through the rubber washer after it passes through the radiator. Place the retaining spring on the pin after the rubber washer and press to tighten.
